    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine

    Ask Lasest Price
    Brand Name : XingKe
    Supply Ability : 20 Set/Sets per Month
    Price : $3,150.00/sets
    Delivery Time : 10-15 days
    Payment Terms : T/T / west Union/ Money gram / Credit Card
    • Product Details
    • Company Profile

    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine

    Product Description

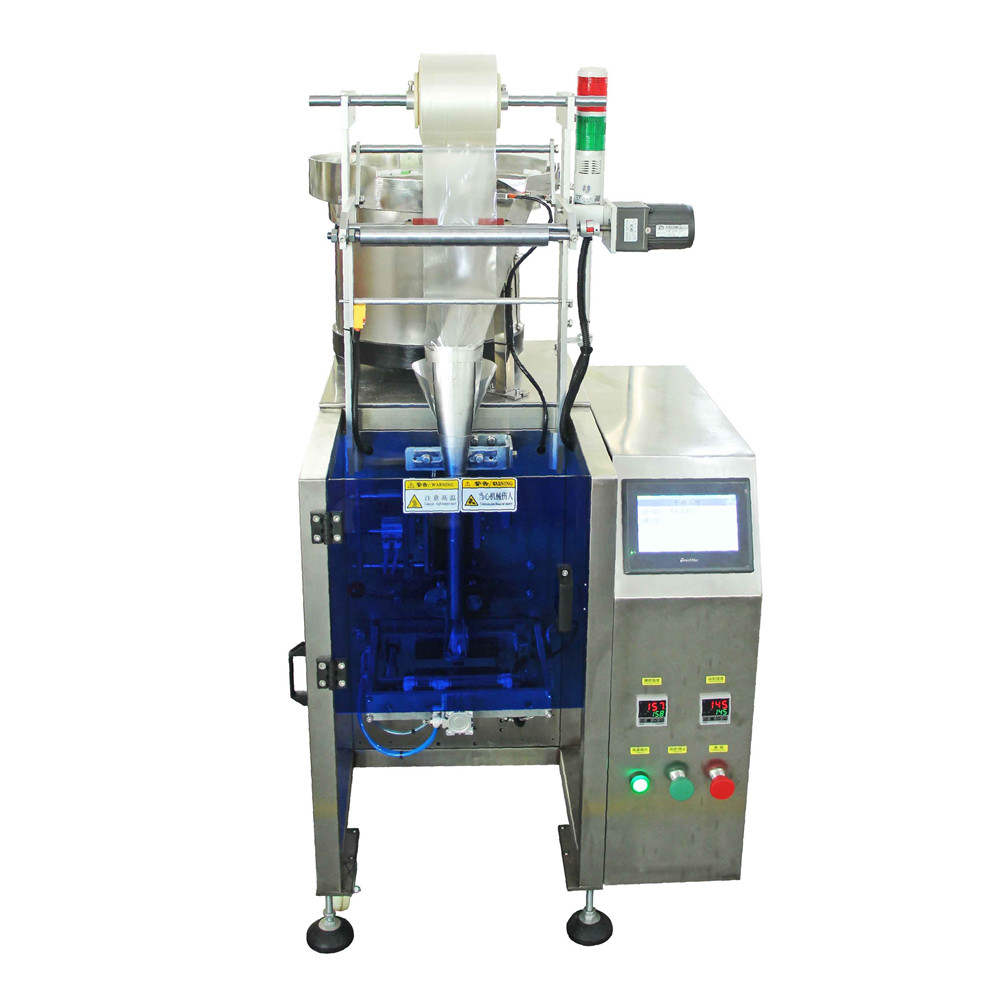

    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    Equipment model
    XK-B861
    Counting method
    optical fiber counting/blocking and putting
    Bag size
    width 40-140 length less than 200 (usually 140)
    Packing speed:
    1-60 bags/min
    Sealing shape
    stripe, back seal/three side seal (usually back seal)
    Voltage power
    220V/50HZ P≈0.6KW
    Air supply
    0.4-0.8MPA
    Bag's both sides
    figure cutter tooth shape
    Dimensions
    length 1100mm / width 750mm/height 1550mm
    Weight
    about 150KG


    XK-B861（Automatic counting, coding and filling packaging machine for single


    materials of screws, nuts ,toys etc)


    Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm. 4.After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2) Scope of application and functional features 1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the molding machine for automatic packaging, and can also use the spare space of the equipment to manually put other materials mixed packaging. 2.It is suitable for "OPP/CPP/ lamination film" as sealing material.
    One Vibrator bowl packaging machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    Packaging machines available
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    XK-B862 Two Vibrator bowl
    Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 1100mm/ width 1000mm/ height 1550mm Weight: about 180KG
    XK-B863 Three Vibrator bowl
    Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1420mm/ width 820mm/ height 1550mm Weight: about 250KG.
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    XK-B864 Four Vibrator bowl
    Product name: Four Vibrator Bowl Packaging Machine Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: four side seal Voltage power: 220V/50HZ P≈2KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1450mm/ width 980mm/ height 1700mm Weight: about 400KG
    XK-B865 Five Vibrator bowl
    Counting mode:optical fiber counting/stopping and discharging Bag size:width 40-140 length less than 200 (conventional 140) Packing speed:1-60 packs/min Sealing shape:stripe, back seal/three side seal (usually back seal) Voltage power:220V/50Hz P≈2KW Air source requirement:0.4-0.8Mpa Bag mouth shape:pattern knife tooth shape Dimensions: length 1350mm/ width 1500mm/ height 1550mm Weight:about 350KG
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
    High Accuracy Automatic One Drum Hardware Bolt Screw Counting Packing Machine
