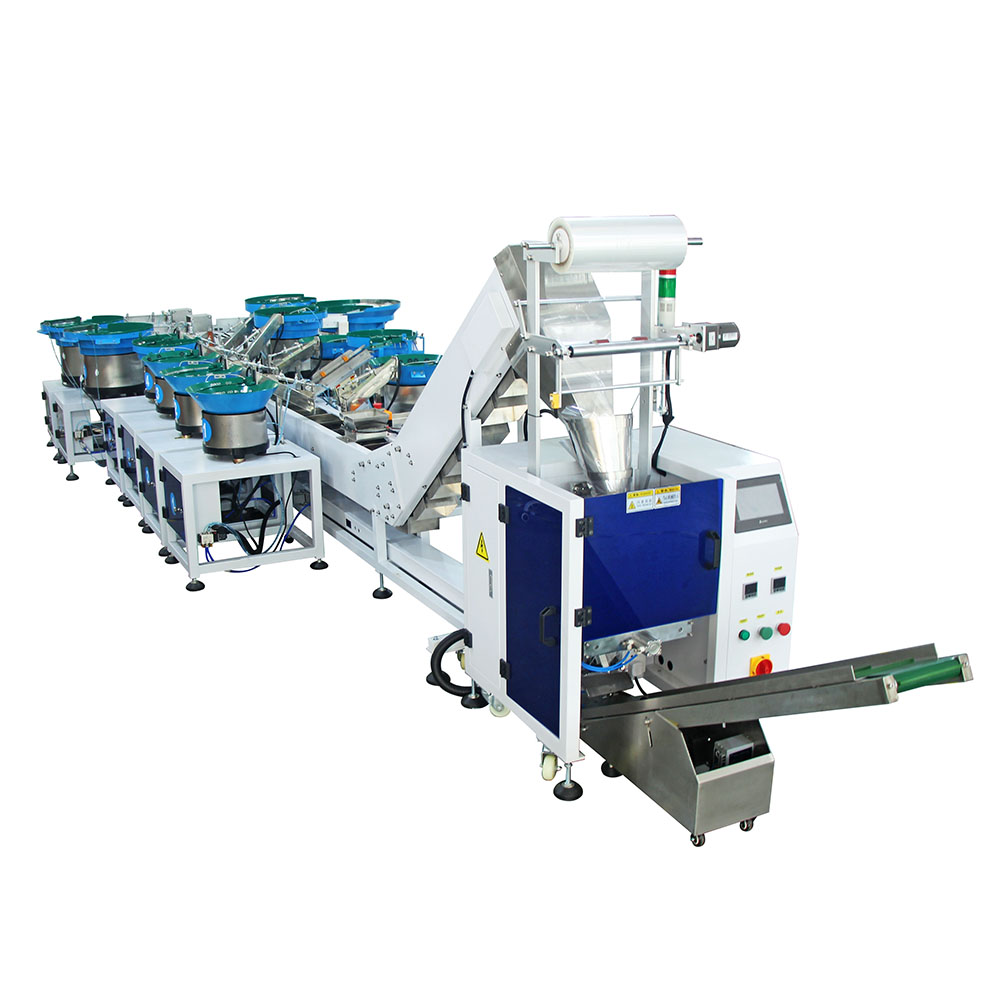

Automatic Multi-Function Packaging Machines Metal Bolt Steel Coil Rotary Screw Counting Packing Machine

Ask Lasest Price
Brand Name :	Xingke
Supply Ability :	50 Set/Sets per Month
Price :	$19,800.00/sets >=1 sets
Delivery Time :	10-15 days
Payment Terms :	T/T / west Union/ Money gram / Credit Card

Add to Cart

Product Details
Company Profile

Automatic Multi-Function Packaging Machines Metal Bolt Steel Coil Rotary Screw Counting Packing Machine

Device model:	XK-B872Z
Counting method:	optical fiber counting/blocking and putting
Bag size:	width 40-140, length less than 200 (usually 140)
Packing speed:	1-60 bags/min
Sealing shape:	stripe, back seal/three side seal (usually back seal)
Voltage power:	220V/50Hz P≈3KW
Air supply:	0.4-0.8Mpa
Bag mouth shape:	figure cutter tooth shape
Dimensions:	length 5600mm/ width 2100mm/ height 1850mm
Weight:	about 3600KG

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, hoist and other expansion equipment.

2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 10 vibrator bowls work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.

We have a variety of machine patent certificates and export certificates, welcome to contact！！
