    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine

    Ask Lasest Price
    Brand Name : XingKe
    Certification : ce
    Supply Ability : 100 Set/Sets per Month
    Price : $17,500.00/sets >=1 sets
    Delivery Time : 10-15 days
    Payment Terms : T/T / west Union/ Money gram / Credit Card
    • Product Details
    • Company Profile

    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine

    Product Description
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Equipment model: XK-B8610T Counting mode: optical fiber counting/blocking and placing Bag making size: width 100-400, length under 450 Packaging speed: 5-15 packages/minute Sealing shape: upper and lower cylinder membrane sealing Voltage and power: 380V/50Hz P ≈ 4.0KW Weight: about 2060KG Pocket mouth shape: pattern knife tooth type Overall dimension: 7940mm long/4450mm wide/1900mm high
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine

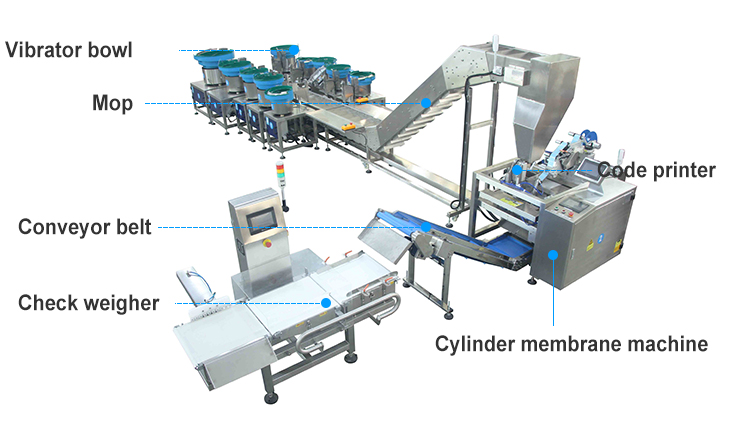

    XK-B870T(10 disc chain bucket packing machine)
    1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The bag is made of cylindrical membrane, without the need of a molding machine. 3. Fault self diagnosis and alarm display. 4. Man machine interface operation, simple and convenient parameter setting. 5. Use heating wire to control temperature and seal, and use pneumatic suction bag to pull the bag. 6. The transmission system is simple and clear, reliable, and easy to maintain. 7. The bag width can be changed at any time, just replace the cylinder membrane. 8. Object sensing to prevent empty bags. 9. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 10. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed.
    2) Scope of application and functional characteristics 1. This product is suitable for automatic counting, feeding, mixing or separate packaging of various materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. The chain bucket climbing type is used to drive the material box to rotate, and the materials are put into the material box manually. The climbing method is used to reduce the height of the trailer. More than 10 vibrating disk stations can be added behind the trailer, which can continue to mix and automatically package materials of more specifications, The free space can also be used for manual feeding. This product is applicable to the products with large quantity and large material, which require PE material as the bag making material, and the upper and lower cylinder membrane packaging. For example, rubber particles, injection molded parts, springs, capacitors, plastic standard parts, water pipes, power cables, etc. The bag making size of this product is large, and the opening is large, so there is no need for the shaper to cut material, and it can be used for filling and packaging of products with large size and large quantity.
    2. It is applicable to "PE cylinder membrane" as sealing material.
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
    Customized Multi-functional Hardware Accessories Pouch Bag Bucket Automatic Packing Machine
