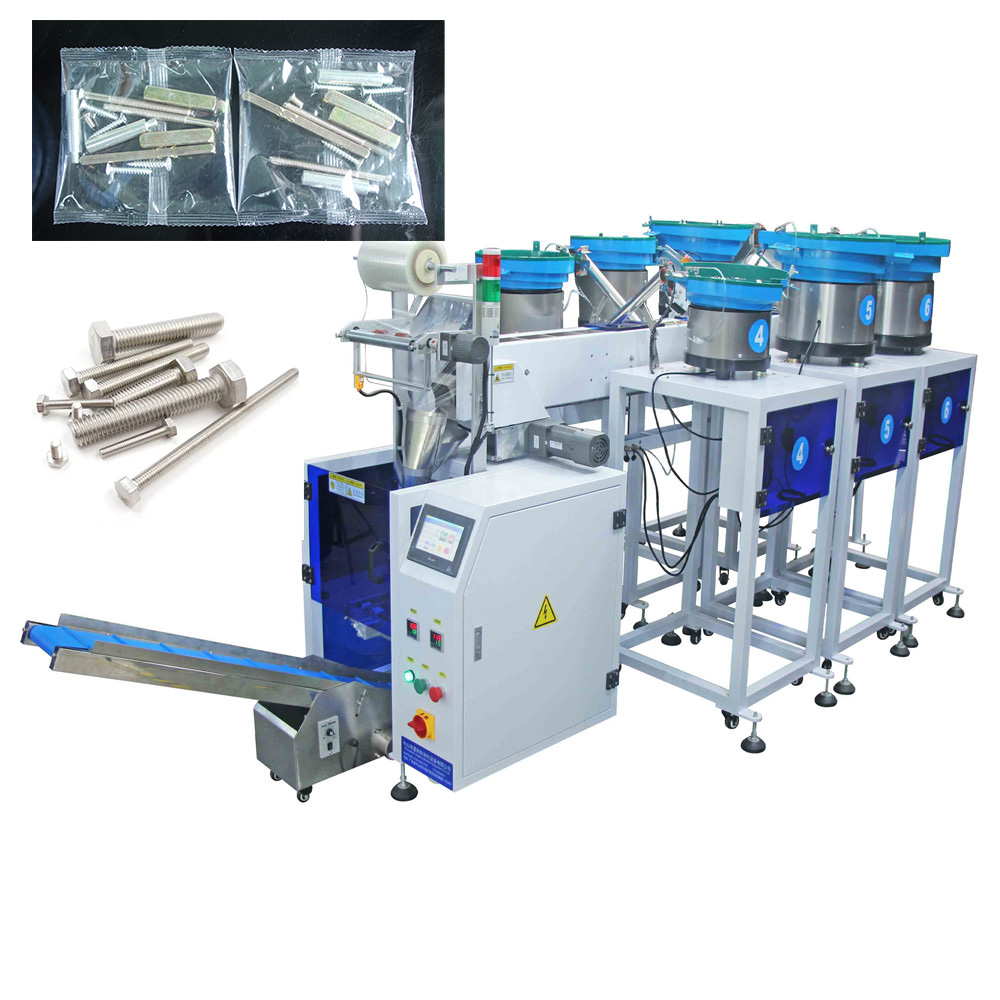

    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine

    Ask Lasest Price
    Brand Name : XingKe
    Certification : ce
    Supply Ability : 100 Set/Sets per Month
    Price : $9,200.00/sets >=1 sets
    Delivery Time : 10-15 days
    Payment Terms : T/T / west Union/ Money gram / Credit Card
    • Product Details
    • Company Profile

    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine

    Product Description
    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine
    Equipment model
    XK-B866T
    Counting method
    optical fiber counting/blocking and placing
    Bag size
    40-140 wide and 200 long (conventional 140)
    Packing speed
    1-60 bags/min
    Sealing shape
    stripe, back sealing/trilateral sealing (normally back sealing)
    oltage power
    220V/50HZ P≈1.5KW
    Air source requirements
    0.4-0.8MPA
    Bag mouth shape
    pattern knife tooth shape
    Dimensions
    3800mm long/1200mm wide/1550mm high
    Weight
    about 700KG
    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine
    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine
    Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine
    XK-B866T (6-coil chain bucket packing machine) (1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The intelligent temperature control system is adopted, with stable temperature control and adjustable temperature as required. 3. The length of the packaging bag is adjustable, and the total number of packages is adjustable. When the set number is reached, an automatic alarm will be given. 4. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed. (2) Scope of application and functional characteristics 1. This product is suitable for automatic mixing or separate packaging of less than six kinds of materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses the chain bucket type to drive the material box to rotate, the vibrating disk automatically counts the materials into the material box, the chain bucket fills the product into the automatic packaging of the shaper, and other materials can also be put into the mixed packaging manually using the spare space of the equipment. 2. It is applicable to "OPP/CPP/composite membrane" as sealing material.
